2012 - 2021 SUBARU BRZ / TOYOTA 86
NEOMAX S COILOVERS - QUALITY AFTERMARKET PART

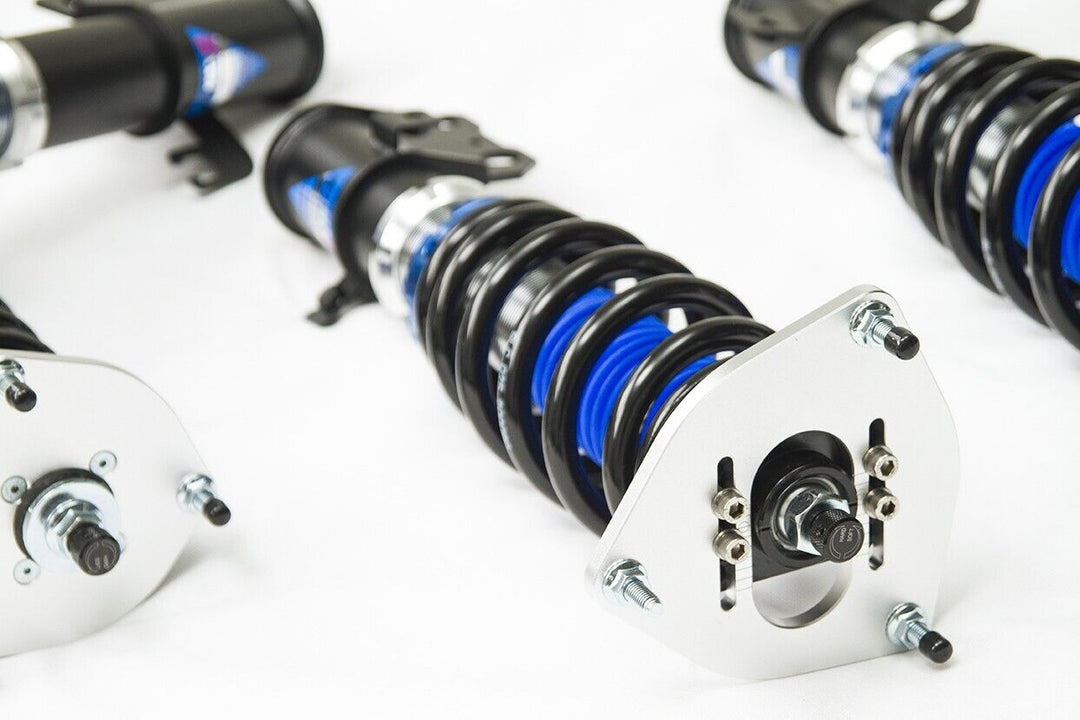

Silver's NEOMAX S Coilovers offer exceptional performance both on the street and the track. These coilovers are equipped with a monotube shock design, independent height adjustability, 40 levels of dampening adjustment, and come with a 15-month warranty. They are meticulously assembled with pre-selected springs and valve settings to ensure a comfortable ride across a range of driving situations. For a more track-oriented experience, the Neomax Black Edition is recommended, while the NEOMAX R or NEOMAX 2-Way coilover options offer custom spring rates and valving.

Fitment:

2012 - 2021 BRZ Models

2012 - 2021 86 Models

Features of the Neomax S Coilovers:

Front Camber Plates: Yes

Rear Camber Plates: No (Available in Neomax Black/Neomax R/Neomax 2-Way only)

Custom Spring Option: No (Available in Neomax R/Neomax 2-Way only)

Custom Setup: No (Available in Neomax R/Neomax 2-Way only)

2-Way Adjustment: No (Available in Neomax 2-Way only)

External Reservoir: No (Available in Neomax 2-Way only)

High Quality Suspension option for your vehicle:

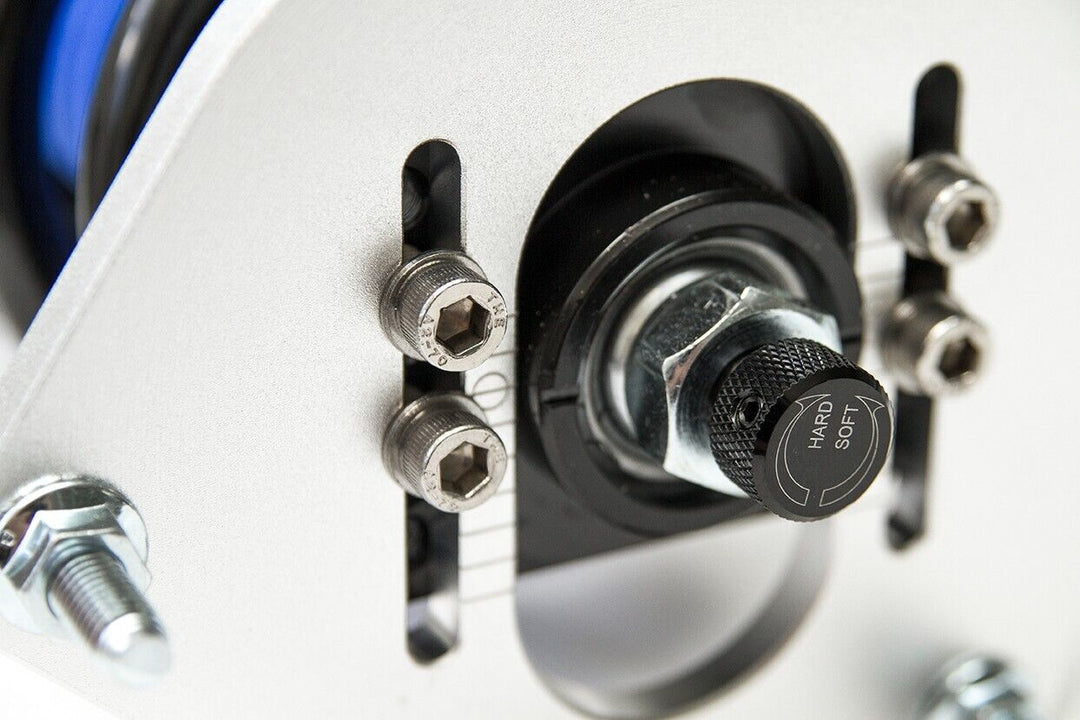

Adjustable Camber Plates (Where Applicable): Camber plates are made from T6 6061 Aluminum and feature a protective anodized finish. In the NEOMAX S-Series, they come standard on the front of any McPherson-style strut application, providing up to 3 degrees of camber adjustment at any ride height. For rear camber plates, please consider the NEOMAX R-Series and NEOMAX 2-WAY coilover options.

Front Pillowball Top Mounts: Pillowball mounts consist of a SUJ2 Steel bearing and a Chromoly Steel 2-piece case. These mounts ensure bind-free operation and precise feedback to the driver.

Fully Height Adjustable: The coilovers are fully height adjustable via the lower mount, allowing fine-tuning of ride height and weight distribution without sacrificing shock stroke. Simple loosening of the lower locking ring and rotating the entire coilover enables easy adjustment for track applications or corner balancing.

OEM Fit Steel Lower Mounts: Steel lower mounts are engineered for strength, with reinforced key areas. They retain all the features of the OEM system, ensuring secure mounting of brake lines and ABS sensor harnesses. This simplifies the installation process.

Aluminum Lower Brackets: T6 6061 Aluminum lower mounts are used in multilink suspension setups. CAD-designed for OEM fitment, these components are lighter than steel counterparts, reducing unsprung weight.

Carbon Steel Shock Body: The shock bodies are constructed from ultra high-strength JIS G3445-STKM13C (DIN2393-ST44-2) carbon steel and coated with electroless nickel for resistance to corrosion and fatigue in harsh climates.

Linear Piston Design: Silver's uses a 44mm Linear type piston in their shocks, delivering excellent track benefits while maintaining ride quality. Each shock is hand-assembled and dyno tested to ensure dampening and compression valving remain within 5% variation from side to side. Every shock undergoes dyno testing; there are no random inspections or tests.

Large Hardened Steel Shafts: The piston shafts feature the largest necessary diameter of hardened steel with chrome plating. Through extensive research and development, Silver's has determined the ideal material and diameter to provide the necessary strength for lateral rigidity. This prevents bending or binding under heavy loads, which can lead to premature wear and reduced piston travel.

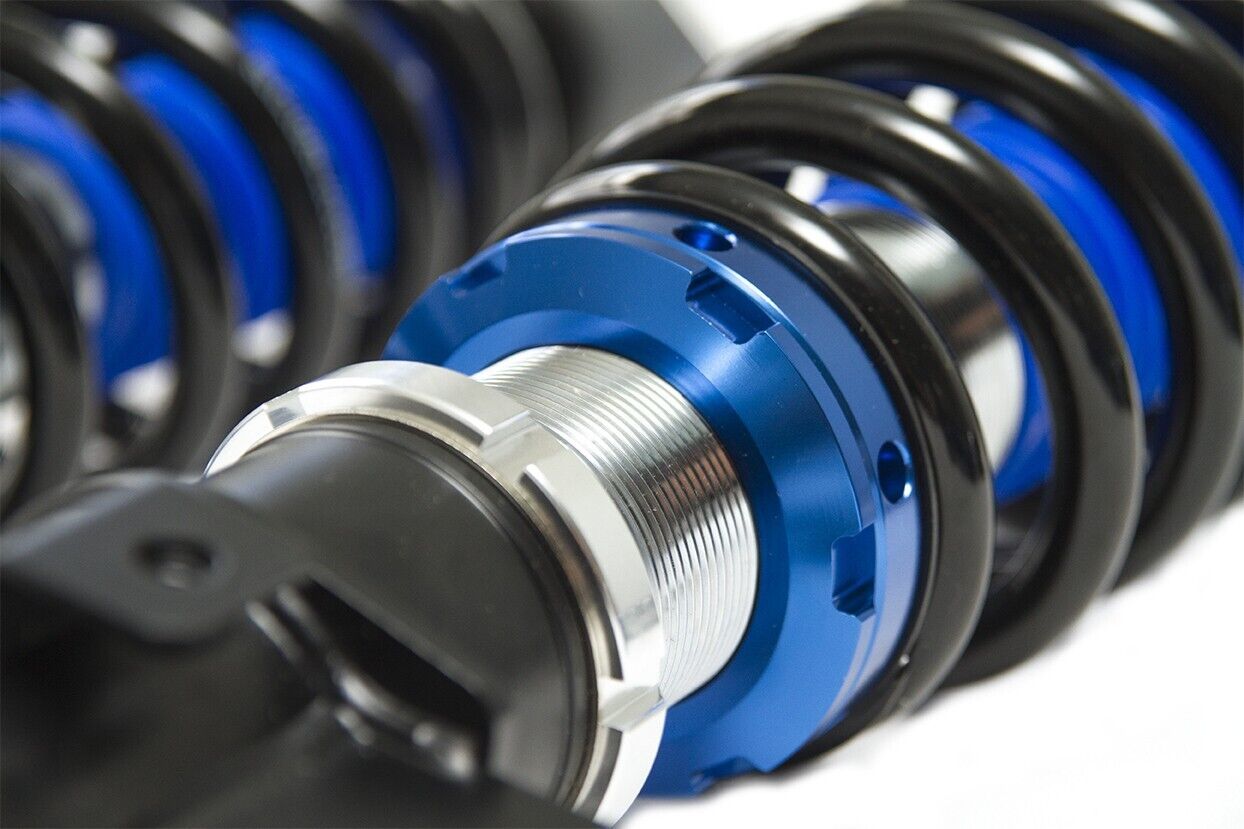

Unique Locking Collars: Silver's locking collars feature a unique design compared to other brands on the


Tested and Recommended by the Subie Shop Team!

Direct replacement set
What you see is what you are purchasing
Please check compatibility before purchasing

 + FREE Shipping!
(If you live in an expensive postage location i.e - Far north QLD, WA, TAS, NT & some parts of SA there will be extra shipping charges - if you are unsure please ask us)

**Get it faster with our low cost express option!**

Visit our store for more GENUINE & Aftermarket auto parts all with FAST dispatch and the BEST prices!

Items are dispatched within 24hrs of your purchase and take 3 - 10 days or 1 - 3 days using our express option. Overseas orders take roughly 5 - 20 days depending on your location.
